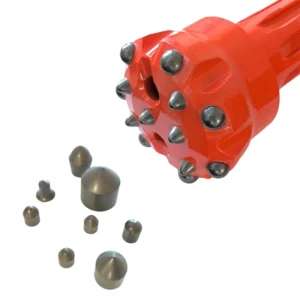

Learning how to choose the right DTH drill bit is essential for efficient and cost-effective rock drilling. Different rock formations vary in hardness, abrasiveness, structure, and fracture conditions, so a drill bit that performs well in one formation may not be the best choice in another.
The right bit can improve penetration rates, reduce unnecessary wear, and help maintain stable drilling performance. When selecting a DTH drill bit, it is important to consider not only the rock formation but also the required hole diameter, bit face design, carbide button shape, operating pressure, and compatibility with the DTH hammer.
This guide explains how these factors affect DTH drill bit selection and how to choose a suitable bit for soft, medium-hard, hard, abrasive, and fractured rock formations.
Why Rock Formation Matters When Choosing a DTH Drill Bit
Rock formation is one of the most important factors in DTH drill bit selection because different formations respond differently to impact and rotation during drilling.
Before selecting a bit, consider several characteristics of the formation:
- Rock hardness: Harder formations generally require durable carbide buttons and a bit design capable of handling repeated high-impact loads.
- Abrasiveness: Abrasive formations can accelerate wear on both carbide buttons and the steel bit body.
- Fracture conditions: Broken or fractured rock may affect hole stability and drilling efficiency.
- Formation consistency: Drilling through alternating soft and hard layers may require a more versatile bit design rather than one optimized for a single formation.
How to Choose the Right DTH Drill Bit for Soft Rock Formations
Soft rock formations such as limestone, shale, and some types of sandstone are generally easier to penetrate, but they can still present drilling challenges. In softer formations, the goal is usually to achieve a high penetration rate while maintaining good hole cleaning and preventing unnecessary bit wear.
For soft rock formations, the following DTH drill bit characteristics are generally recommended:
- Bit face: Concave or flat face designs can provide stable drilling and efficient cuttings removal.
- Button shape: Ballistic or semi-ballistic carbide buttons can help improve penetration in softer formations.
- Flushing: Good air flushing is important to remove cuttings quickly and prevent regrinding.
- Operating parameters: Excessive impact energy should be avoided because it may increase unnecessary wear without significantly improving penetration.
In soft rock, selecting a bit that balances fast penetration with effective flushing can improve drilling efficiency and reduce the risk of excessive wear. However, the final choice should also consider hole diameter, compressor capacity, and the DTH hammer being used.
Choosing a DTH Drill Bit for Medium-Hard Rock Formations
Medium-hard rock formations require a balance between penetration speed and bit durability. These formations may include harder limestone, sandstone, dolomite, and moderately competent rock where both impact resistance and efficient cutting removal are important.
For medium-hard rock formations, the following DTH drill bit characteristics are generally recommended:
- Bit face: Concave or convex face designs can provide a good balance between penetration efficiency and bit stability.
- Button shape: Spherical or semi-ballistic carbide buttons are commonly suitable for balancing wear resistance and penetration.
- Flushing: Adequate air flushing helps remove cuttings efficiently and reduces secondary crushing at the bottom of the hole.
- Operating parameters: Use balanced impact energy and rotation speed to maintain penetration while controlling button and body wear.
For medium-hard rock, the best DTH drill bit should provide a practical balance between penetration rate and wear resistance. Proper matching of the bit face, carbide button shape, flushing capacity, and operating parameters can help maintain consistent drilling performance and extend bit service life.
Choosing a DTH Drill Bit for Hard Rock Formations
Hard rock formations such as granite, basalt, quartzite, and other highly competent rocks place greater impact and wear demands on DTH drill bits. In these conditions, durability, carbide button strength, and stable energy transfer become especially important for maintaining drilling efficiency.
For hard rock formations, the following DTH drill bit characteristics are generally recommended:
- Bit face: Convex or flat face designs can provide strong impact transfer and stable drilling performance in hard rock.
- Button shape: Spherical carbide buttons are generally preferred for their strength and wear resistance under high-impact conditions.
- Flushing: Effective air flushing is important to remove broken rock particles and prevent excessive regrinding.
- Operating parameters: Maintain sufficient impact energy while controlling rotation speed and air pressure to reduce excessive bit wear.
In hard rock, DTH drill bit selection should prioritize durability, carbide button strength, and efficient energy transfer. Matching the bit design with the rock hardness, hole diameter, DTH hammer, and available air pressure can help maintain penetration performance while reducing premature wear and extending bit service life.
Choosing a DTH Drill Bit for Abrasive Rock Formations
Abrasive rock formations, such as quartz-rich sandstone and other silica-rich rocks, can cause rapid wear on carbide buttons and the steel bit body. In these conditions, wear resistance and effective flushing are especially important for maintaining drilling performance and controlling bit costs.
When learning how to choose the right DTH drill bit for abrasive rock formations, the following characteristics are especially important:
- Bit face: Flat or convex face designs can help provide stable drilling while reducing concentrated wear in abrasive conditions.
- Button shape: Spherical carbide buttons are generally preferred because they offer good wear resistance and maintain their shape longer.
- Flushing: Strong and efficient air flushing is essential to remove abrasive cuttings quickly and reduce secondary wear.
- Operating parameters: Avoid excessive rotation speed and impact energy, as overly aggressive settings can accelerate carbide button and bit body wear.
In abrasive rock, extending bit life is often as important as maximizing penetration rate. Selecting wear-resistant carbide buttons, maintaining effective flushing, and using appropriate operating parameters can reduce premature wear and help lower the overall drilling cost per meter.
Choosing a DTH Drill Bit for Fractured Rock Formations
Fractured rock formations can create unstable drilling conditions because broken rock, joints, and cracks may cause hole deviation, uneven impact loading, and poor cuttings removal. In these formations, bit stability and effective flushing are especially important for maintaining consistent drilling performance.
To understand how to choose the right DTH drill bit for fractured rock formations, consider the following characteristics:
- Bit face: Concave or flat face designs can help improve drilling stability and reduce the risk of deviation in broken or fractured ground.
- Button shape: Spherical or semi-ballistic carbide buttons can provide a good balance of durability and penetration in uneven formations.
- Flushing: Strong air flushing is important to remove loose rock fragments and prevent cuttings from accumulating around the bit.
- Operating parameters: Avoid excessive impact energy and rotation speed, as aggressive settings may increase vibration, hole deviation, and bit wear.
In fractured rock, maintaining hole stability is often more important than maximizing penetration speed. Choosing a stable bit design, maintaining effective flushing, and using controlled operating parameters can help reduce hole deviation, prevent excessive vibration, and improve overall drilling consistency.
Other Factors to Consider When Choosing a DTH Drill Bit
Rock formation is the primary factor in DTH drill bit selection, but it should not be considered alone. Hole diameter, bit face design, carbide button shape, air pressure, compressor capacity, and DTH hammer compatibility can all affect drilling efficiency, bit life, and overall operating cost.
Hole Diameter and Bit Size
The drill bit diameter should match the required hole size and the operating range of the DTH hammer. Using a bit that is too large for the hammer can reduce impact efficiency and increase air consumption, while an undersized bit may not provide the required hole diameter or sufficient clearance for efficient drilling.
Bit Face Design
Different bit face designs are suited to different drilling conditions. Concave faces provide good stability and are widely used in many rock formations, convex faces can improve penetration in hard rock, and flat faces offer stable performance in abrasive or broken formations. The best choice depends on rock hardness, abrasiveness, and the required balance between penetration speed and bit life.
Carbide Button Shape
Spherical carbide buttons offer high strength and wear resistance, making them suitable for hard and abrasive rock. Semi-ballistic buttons can provide faster penetration in softer or medium-hard formations but may wear faster in highly abrasive conditions. Button shape should therefore be selected according to rock hardness, abrasiveness, and the desired balance between drilling speed and service life.
Air Pressure and Compressor Capacity
DTH drilling performance depends heavily on adequate air pressure and airflow. The compressor must provide enough capacity to operate the DTH hammer efficiently while also removing rock cuttings from the hole. Insufficient air supply can reduce impact energy, slow penetration, and cause poor hole cleaning, while proper compressor matching helps improve drilling efficiency and bit life.
DTH Hammer Compatibility
The DTH drill bit must be compatible with the hammer shank design and operating specifications. Common shank types vary between hammer models and manufacturers, so the correct shank, bit diameter, and hammer size should be confirmed before ordering. Proper compatibility ensures efficient energy transfer, stable drilling performance, and helps prevent premature wear or damage to the bit and hammer.
How to Select the Right DTH Drill Bit Step by Step
Selecting the right DTH drill bit requires matching the bit to the rock formation, hole diameter, hammer, and available air supply. A systematic selection process can improve penetration rate, extend bit life, reduce drilling costs, and help maintain consistent hole quality.
Step 1: Identify the Rock Formation
Start by identifying the hardness, abrasiveness, and structure of the rock formation. Soft, medium, hard, abrasive, and fractured formations require different combinations of bit face design and carbide button shape. Correctly identifying the formation is the foundation for selecting a DTH drill bit that provides a good balance of penetration rate, stability, and service life.
Step 2: Determine the Required Hole Diameter
Confirm the required hole diameter based on the drilling application. The selected bit diameter must match both the target hole size and the operating range of the DTH hammer. Choosing the correct diameter helps maintain efficient impact energy transfer, proper hole clearance, and stable drilling performance.
Step 3: Match the Bit to the DTH Hammer
Make sure the DTH drill bit matches the hammer shank type, hammer size, and operating specifications. Using the correct shank and bit diameter ensures efficient energy transfer and stable drilling performance, while an incompatible bit can cause poor performance, excessive wear, or damage to the hammer and bit.
Step 4: Select the Appropriate Bit Face Design
Choose the bit face design according to the rock conditions and drilling requirements. Concave faces provide good stability and are suitable for many formations, convex faces can improve penetration in hard rock, while flat faces perform well in abrasive or broken formations. The right face design helps balance drilling speed, stability, and bit life.
Step 5: Choose the Right Carbide Button Shape
Select the carbide button shape according to rock hardness and abrasiveness. Spherical buttons provide high wear resistance and are suitable for hard or abrasive rock, while semi-ballistic buttons can offer faster penetration in softer or medium-hard formations. The goal is to achieve the best balance between penetration rate and bit life.
Step 6: Check Air Pressure and Compressor Capacity
Confirm that the air compressor can provide the pressure and airflow required by the DTH hammer and drill bit. Adequate air supply is essential for efficient impact energy and effective removal of rock cuttings. Insufficient air pressure or airflow can reduce penetration speed, cause poor hole cleaning, and increase bit wear.
Step 7: Balance Drilling Speed and Bit Life
Finally, consider the balance between penetration speed, bit life, and overall drilling cost. The fastest-drilling bit is not always the most economical choice. A properly selected DTH drill bit should deliver stable penetration, reasonable wear resistance, and consistent performance throughout its service life.
Common Mistakes When Choosing a DTH Drill Bit
Choosing the wrong DTH drill bit can reduce drilling efficiency, shorten bit life, and increase operating costs. Many selection problems are caused by focusing only on bit diameter or purchase price while ignoring rock conditions, hammer compatibility, air supply, and overall drilling requirements.
Mistake 1: Choosing a Bit Based Only on Price
Selecting the cheapest DTH drill bit may reduce the initial purchase cost, but it can lead to faster wear, lower penetration rates, and more frequent bit replacement. Bit quality, rock conditions, drilling efficiency, and service life should be considered together when evaluating the true drilling cost.
Mistake 2: Ignoring Rock Formation and Abrasiveness
Using the same DTH drill bit for every rock formation can lead to poor drilling performance and premature wear. Rock hardness, abrasiveness, and fracture conditions should be evaluated before selecting the bit face and carbide button shape. Matching the bit design to the formation helps improve penetration efficiency and extend bit life.
Mistake 3: Using an Incompatible DTH Hammer and Bit
A DTH drill bit must match the hammer shank type, hammer size, and operating specifications. Using an incompatible bit can reduce energy transfer, cause unstable drilling, and accelerate wear or damage to both the bit and hammer. Always confirm compatibility before selecting or ordering the drill bit.
Mistake 4: Ignoring Air Pressure and Compressor Capacity
Even the correct DTH drill bit cannot perform efficiently without adequate air pressure and airflow. An undersized compressor can reduce impact energy, slow penetration, and cause poor hole cleaning. Always make sure the compressor capacity matches the requirements of the DTH hammer and drilling conditions.
Mistake 5: Selecting the Wrong Bit Face or Button Shape
Bit face design and carbide button shape should be selected according to the rock formation. Using the wrong combination can reduce penetration efficiency, increase vibration, and accelerate wear. Consider rock hardness, abrasiveness, and fracture conditions when choosing the most suitable bit design.
Mistake 6: Focusing Only on Penetration Speed
A faster penetration rate does not always mean lower drilling cost. Aggressive drilling can increase carbide wear, bit damage, and replacement frequency. The better approach is to balance penetration speed, bit life, drilling stability, and overall cost per meter.
How to Extend DTH Drill Bit Service Life
Proper operation and maintenance can significantly extend DTH drill bit service life and reduce drilling costs. Correct air pressure, regular inspection, proper operating practices, and timely replacement of worn components all help maintain stable drilling performance and prevent premature bit failure.
1.Maintain Proper Air Pressure and Airflow
Operate the DTH hammer within the recommended air pressure and airflow range. Insufficient air supply reduces impact efficiency and hole cleaning, while improper operating pressure can increase wear on the hammer and drill bit. Make sure the compressor, hoses, and connections provide stable airflow throughout drilling.
2.Inspect the Drill Bit Regularly
Operate the DTH hammer within the recommended air pressure and airflow range. Insufficient air supply reduces impact efficiency and hole cleaning, while improper operating pressure can increase wear on the hammer and drill bit. Make sure the compressor, hoses, and connections provide stable airflow throughout drilling.
3.Avoid Excessive Rotation Speed
Use an appropriate rotation speed for the rock formation, bit diameter, and drilling conditions. Excessive rotation can increase carbide button wear, generate unnecessary heat, and shorten bit life. Adjust the rotation speed to maintain smooth drilling and efficient rock breaking without placing excessive stress on the drill bit.
4.Ensure Effective Hole Cleaning
Maintain sufficient airflow to remove rock cuttings efficiently from the bottom of the hole. Poor hole cleaning can cause cuttings to be repeatedly crushed by the drill bit, increasing carbide wear, reducing penetration efficiency, and generating unnecessary heat. Effective flushing helps protect the bit and maintain consistent drilling performance.
5.Monitor Carbide Button Wear
Monitor carbide button wear throughout the drilling process. Excessively worn buttons reduce penetration efficiency and can increase stress on the bit body. Regular inspection and timely maintenance help maintain effective rock breaking and prevent avoidable damage to the drill bit.
6.Record Drilling Performance and Bit Life
Keep records of the rock formation, drilling depth, penetration rate, bit type, and total meters drilled with each bit. Comparing this information across different drilling conditions can help identify the most cost-effective bit configuration and improve future DTH drill bit selection.
Frequently Asked Questions About DTH Drill Bits
What Type of DTH Drill Bit Is Best for Hard Rock?
For hard and abrasive rock, durability and wear resistance are usually more important than maximizing penetration speed. Spherical carbide buttons are commonly preferred because they provide good strength and wear resistance under repeated impact. The final choice should also consider rock abrasiveness, fracture conditions, hole diameter, hammer model, and operating parameters.
How Do I Choose the Correct DTH Drill Bit Size?
Start with the required hole diameter and then check the recommended bit diameter range for your DTH hammer. The drill bit must also have a shank that is compatible with the hammer. When ordering a replacement bit, provide both the required diameter and hammer model rather than selecting the bit by diameter alone.
How Do I Know If a DTH Drill Bit Fits My Hammer?
Check the hammer model and its specified bit shank. DTH systems use different shank designs, including DHD, QL, COP, Mission, and others. Similar bit diameters do not necessarily mean that the bits are interchangeable. If you are unsure, provide the hammer brand, model, required bit diameter, and available shank information before ordering.
How Long Does a DTH Drill Bit Last?
There is no fixed service life for every DTH drill bit. Bit life depends on rock hardness and abrasiveness, carbide grade, bit design, operating pressure, rotation speed, flushing efficiency, drilling practices, and maintenance. For this reason, comparing cost per meter drilled is often more useful than comparing bit life or purchase price alone.
What Is the Difference Between Flat Face and Concave DTH Bits?
A flat-face DTH bit has a simple and robust face design and is commonly used in demanding or abrasive drilling conditions. A concave-face bit has a recessed center that can provide good drilling stability and help maintain hole direction in many applications. Neither design is universally better; the right choice depends on the rock formation, hole requirements, hammer, flushing conditions, and desired balance between penetration and durability.
Can One DTH Drill Bit Be Used for Different Rock Formations?
A DTH drill bit can often work across a range of rock formations, especially when drilling conditions are variable. However, a bit optimized for soft, non-abrasive rock may not provide the same durability in hard or highly abrasive formations. For projects with changing geology, monitor penetration rate, button wear, vibration, and drilling stability to determine whether a different bit configuration would improve overall performance.
Choose the Right DTH Drill Bit for Your Application
Choosing the right DTH drill bit requires more than matching a bit diameter to a hole size. Rock hardness, abrasiveness, formation structure, bit face design, carbide button shape, hammer compatibility, air supply, and drilling depth all influence drilling performance and bit life.
For a specific drilling project, providing detailed operating information can make DTH drill bit selection much more accurate. Before requesting a recommendation or quotation, prepare the following information:
- Rock type or formation
- Required hole diameter
- Drilling depth
- DTH hammer brand and model
- Bit shank, if known
- Working air pressure
- Current bit performance or wear problems
With these details, TJ Good Drilling can recommend a suitable DTH drill bit and compatible drilling tools for your application. Explore our DTH drilling tools or contact us with your drilling parameters to discuss the appropriate bit configuration for your project.
