Product Description:

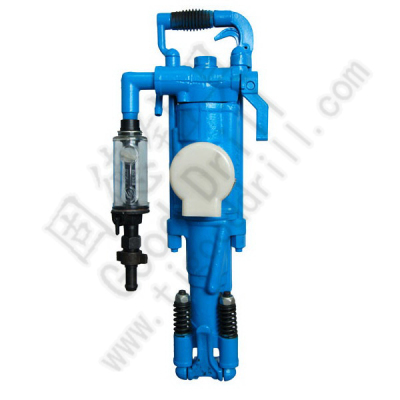

YT23 model airleg rock drill is a kind of high efficiency airleg type rock drill.The Products are mainly used in drilling operation of mine tunneling,and it’s widely used drilling tools for railways, water conservancy construction and national defense construction areas,and it can be matched with FY200A model oil injector and FT160A model airleg,it can do wet rock drilling for medium hard and high hard,level of rock drilling and tilt boreholes.Unloaded airleg also be used on trolley.
Specification:
YT23 MODEL AIRLEG TYPE ROCK DRILL | ||
Weight | 24 kg | |
External Dimensions (LxWxH) | 628X232X207 mm | |
Cylinder Diameter | 76 mm | |
Piston Structure Stroke | 55 mm | |
Impact Frequency Of Rock Drill | ≥37 Hz | |
Impact Energy | ≥65 J | |
Rock Drilling Air Consumption | ≤80 L/s | |
Torque | ≥18 N.m | |
Use Water Pressure | 0.3 MPa | |
Air Pipe Inner Diameter | 25 mm | |
Water Pipe Inner Diameter | 13 mm | |
Drilling Diameter | 34~42 mm | |
Suitable Max Drilling Depth | 5 m | |
Working Temperature | -30~50 ℃ | |
Shank Size | H22X108 Mm | |
FY200A Model Oil Lubricator | ||
Weight | 1.2 | kg |
Oil Capacity | 0.2 | L |
Air leg | FT160A Model | FT160B Model |
Weight | 17 kg | 16 kg |
Air Leg Length | 1668 mm | 1428 mm |
Propulsion Stroke | 1338 mm | 1098 mm |
Maximum Shaft Thrust | 2000 N | 2000 N |
