Product Description:
The Products are mainly used in construction sites, various types of mines, railways, water conservancy construction and national defense construction areas for drilling operations.
Specification:

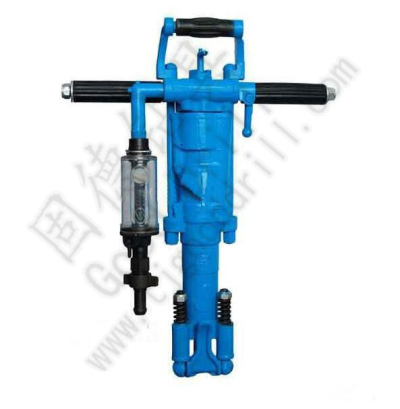

YT24 ROCK DRILL | |||
Weight | ≈ 24 kg | ||
Length | 678 mm | ||
Air Pressure | 0.4~0.63 MPa | ||
Piston Diameter | 70 mm | ||
Piston Stroke | 70 mm | ||
Impact Frequency | ≥ 31 Hz | ||
Air Consumption | ≤ 66.7 L/s | ||
Air Pipe Inner Diameter | 19 mm | ||
Water Pipe Inner Diameter | 13 mm’ | ||
Shank Size | 22x108 ±1 mm | ||
FY200B Model Oil Lubricator | |||
Oil Capacity | 200 L | ||
Air Leg | FT140B Model | FT140D Model | |
Weight | ≈ 15.6 kg | ≈ 13.9 kg | |
Length | 1687 mm | 1400 mm | |
Propulsion Stroke | 1250 mm | 965 mm | |
Cylinder Diameter | 60 mm | 60 mm | |
