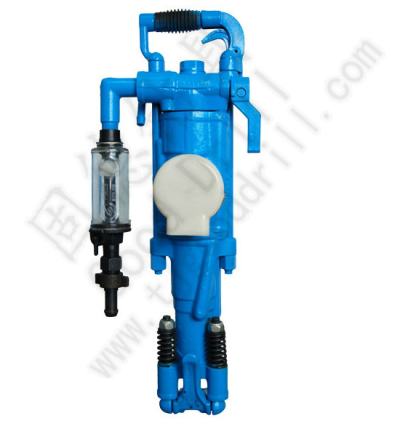

Product

Weight

≈26 kg

Length

661mm

Piston Diameter

80 mm

Piston Stroke

60 mm

Air Pressure

0.4 MPa

0.5 MPa

0.63 MPa

Impact Frequency

≥ 28 Hz

≥ 35 Hz

≥ 36 Hz

Impact Energy

≥44 J

≥ 63 J

≥ 70 J

Air Consumption

≤ 52 L/s

≤ 58 L/s

≤ 82 L/s

Rotation Torque

≥ 15 N·m

≥ 19 N·m

≥ 23 N·m

Drilling Hole Speed

≥ 250 mm/min

≥ 400 mm/min

≥ 470 mm/min

Noise

≤ 124 Db/(A)

≤ 125 Db/(A)

≤ 127 Db/(A)

Average Linear Meter

Before the First Breakdown

≥ 400 m

Drilling Hole Depth

≥ 300 m

Air Pipe Inner Diameter

25 mm

Water Pipe Inner Diameter

13 mm

Drilling Hole Diameter

34~42 mm

Max. Drilling Hole Depth

≥3 m

Shank Size

22x108±1 mm

FY200B or FY200C Model Oil Lubricator

Weight

1.02 kg

Oil Capacity

200 ml

Air Leg

FT160BD Model
（Short   Air Leg）

FT160BC Model
（Long   Air Leg）

Weight

≈14.4 kg

≈16.9 kg

Length

1400 mm

1800 mm

Propulsion Stroke

965 mm

1365 mm

Cylinder Diameter

65 mm

65 mm
